Filtration

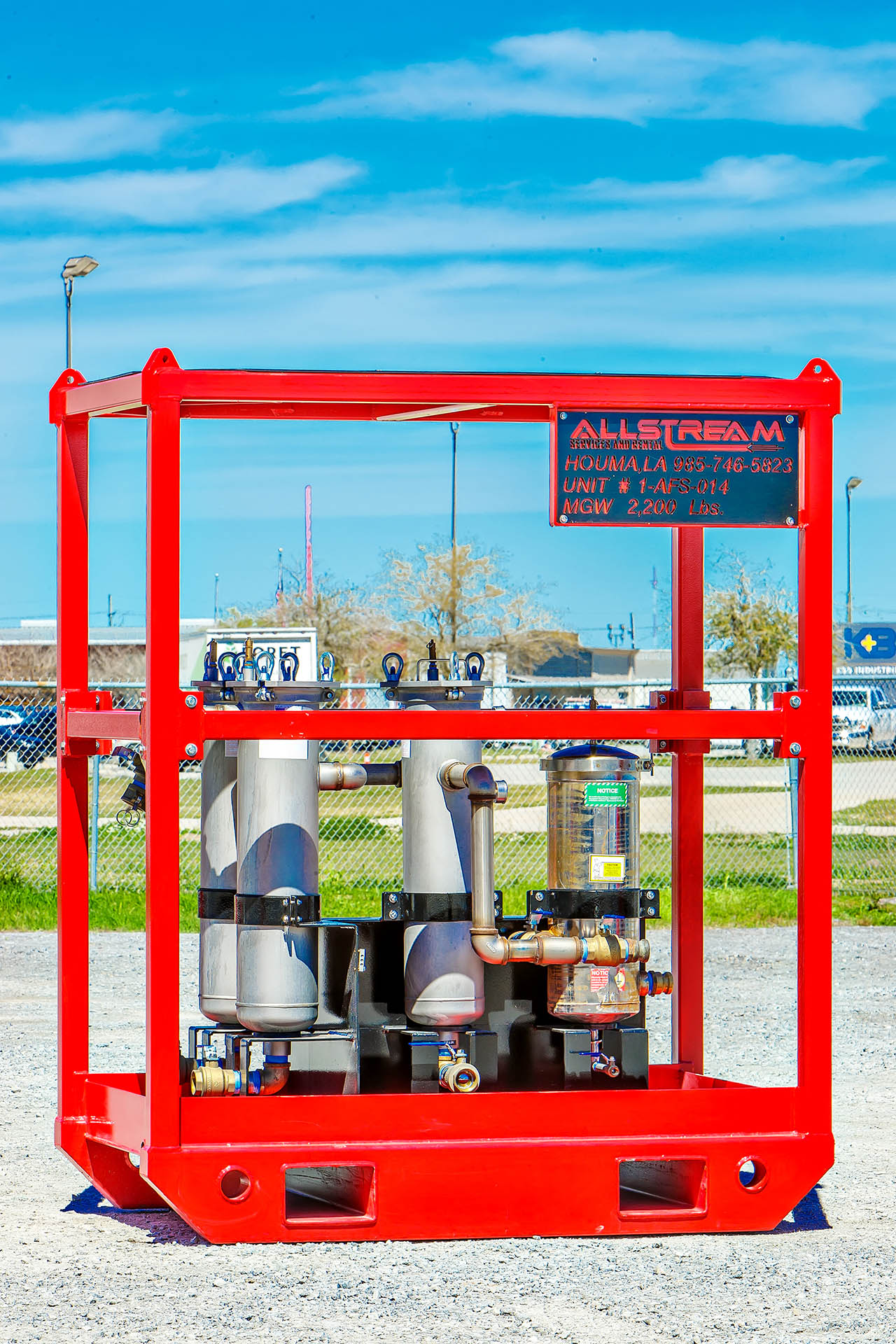

Filter Pod

Allstream’s filter pod filters out residual paint particles not caught in the Dewatering Vac Box in the water filtration process. This filter pod uses a 3- step filtration process. Water is pulled from the Dewatering vac box through the first two sets of bag filters. Then pushed through the last bag filter before exiting out of the 6 bank filter canisters with 6 – 5 Micron blown filters for final cleanliness.

Unit Dimensions

L-6’2” x W-4’ x H-7’10”
MGW – 2,200 LBS

Specifications

  • 3 x 1 MICRON BAG FILTERS
  • 6 x 5 MICRON BLOWN FILTER CARTRIDGE
  • SEPCO APPROVED SKID WITH CERTIFIED SLINGS
  • CAPABLE OF FILTERING UP TO 84 GPM
  • CERTIFIED AND CALIBRATED 125 PSI POP OFF VALVES ON EACH POD
