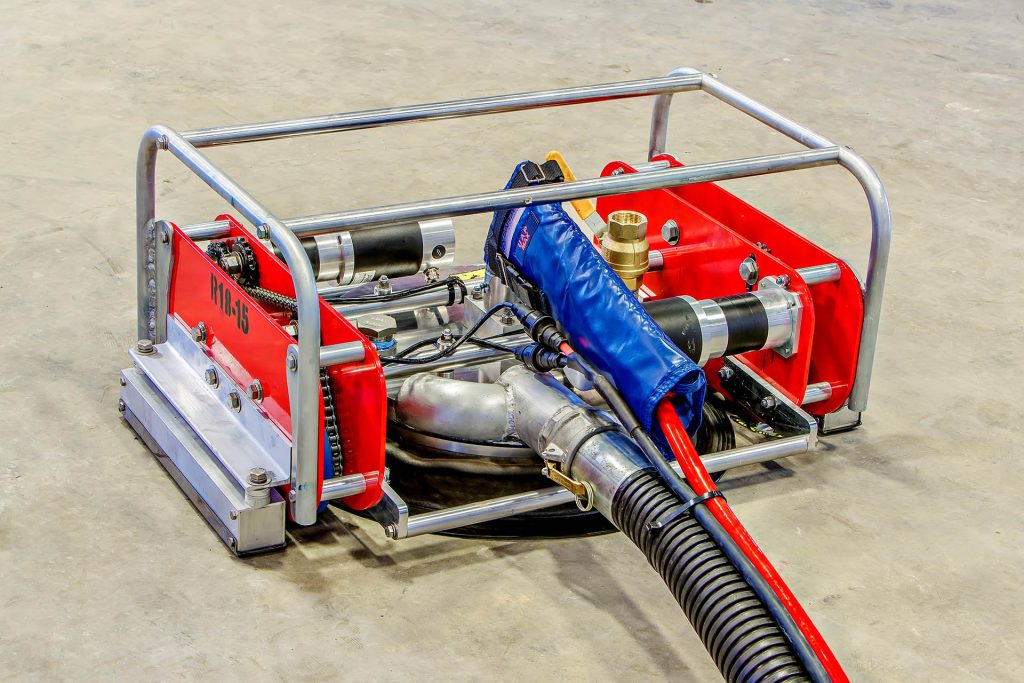

STINGRAY ROBOTIC CRAWLER

DC Powered wireless remote-controlled crawler. Vacuum assist
magnetically attached, steel surface preparation robot with 18″cut
path. All aluminum construction, with urethane treaded wheels ,
steel chain drive and all stainless hardware. Nema 4x steel control
box 115/230v AC input.

Unit Dimensions

38”W x 22”L x 15” H
MGW – 140 LBS

Specifications

  • Motors: (2) 1/3hp 90 volt brushed DC operating at 5 amps each maximum IP67 rated
  • Gear ratio: 90:1 planetary reduction with 2:1 chain drive reduction
  • Wheel Diameter: 6″ (15 cm) polyurethane tread
  • Maximum speed: 30′ (9 m) per minute
  • Steering: Skid steer Zero turn radius
  • Magnet assist: (2) outboard mounted Halbach arrays in aluminum housing providing 500lbs each at 7/16″ from steel surface.
  • Powerhead: Available in sizes 10“, 12“, 18“ diameter, up to 20 nozzles, selfrotating, 6-13 GPM capacity.
  • Operating pressure: 40,000 up to 55,000 psi.
  • Cutting speed: 400- 800 SQFT/hour consider all factors: pressure and flow from UHP pump, length of run, thickness of coatings, operator experience
  • Wireless operation: 2.4Ghz up to 500’ line of sight
  • Tether length: as needed up to 400′. 12awg 4 conductor SOOW In 200 ft sections IP68 connections
  • Vacuum connection: 3″ cam & groove
  • UHP connection: either M14, or P-style autoclave 8mm standard UHP hose
