Vacuum System

Vacuum Unit

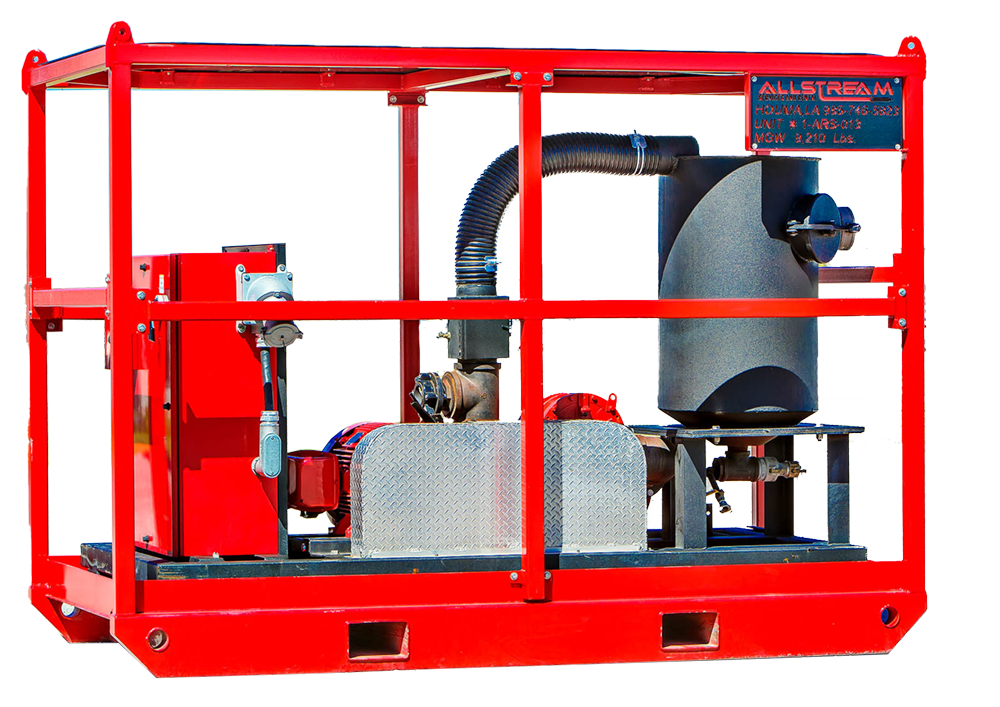

75HP ELECTRIC POWERED VACUUM UNIT. VARIABLE FREQUENCY
CONTROLLED; BELT DRIVEN WITH A HEAVY-DUTY SILENCER. BLOWER
RATED TO 16” HG AT 1,159 CFM.

L-12’ x W-6’ x H-9’
MGW – 9,200 LBS

Motor: TECO TEFC 75hp (56kW) 365 Frame 460VAC 3ph 60 Hz 1760 rpm max. Can be configured for 380V – 415V 50hz
VFD: Input circuit breaker with through the door Nema 3R rated handle
Low impedance line reactor
DTK basic lightning arrestor
Fuji Mega series full vector drive
Control power transformer with primary and secondary fusing
Tube type enclosure cooling system
Enclosure thermostat for fan control
Heavy duty 30mm Nema 4X rated HOA switch
Nema 4X rated 1 turn potentiometer
Nema 4/12 fully welded with gasket
Keypad to the door and protected by Nema 3R hinged and lockable
instrument cover
Suitor Bilt 7M Series Legend Bi-lobe blower
Pulley ratio: 1.2:1 not to allow overspeed of blower at max frequency
Vacuum connection: 4″ cam & groove
All mounted on fully welded steel skid with Linex coating. Standard large fork pockets and optional 1 or 4-point lifting bales
